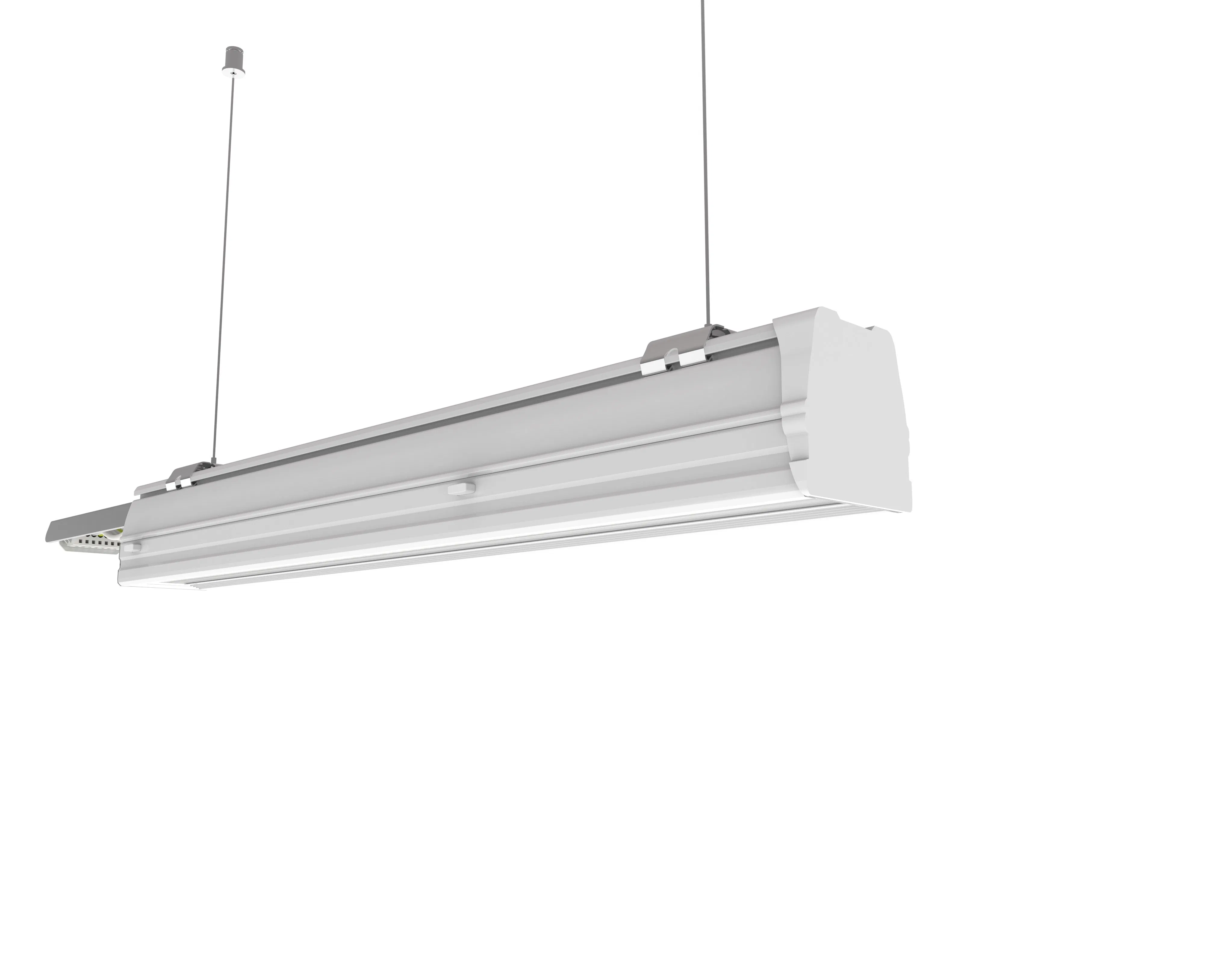

Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight

1 / 5

Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

YB01Z Series

IP Rating

IP20

Material

Aluminum

Style

European

Certification

CE, EMC, Energy Star, FCC, GS, RoHS, Saso, UL

LED Chips

CREE

Color Temperature

3000K/4000K/5000K/6000K

Voltage

100V-277V

Beam Angle

30°/60°/90°/120°/Asymmetric

CRI

0.9

Luminous Flux

130lm/150lm/180lm

Dimming

Non-Dimming/Dimming

Capacity

500000 Pieces/Year

Product Overview

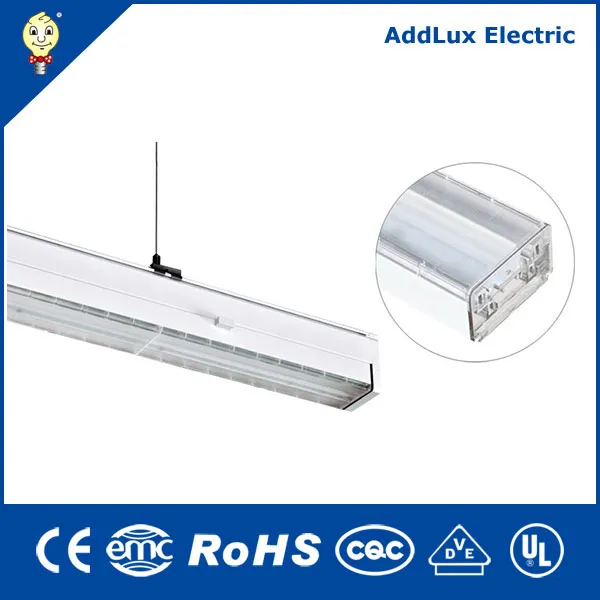

Saso cUL Ce CB 28W-150W shop light Best Array Dimmable Industrial Linkable LED Track Linear Lights

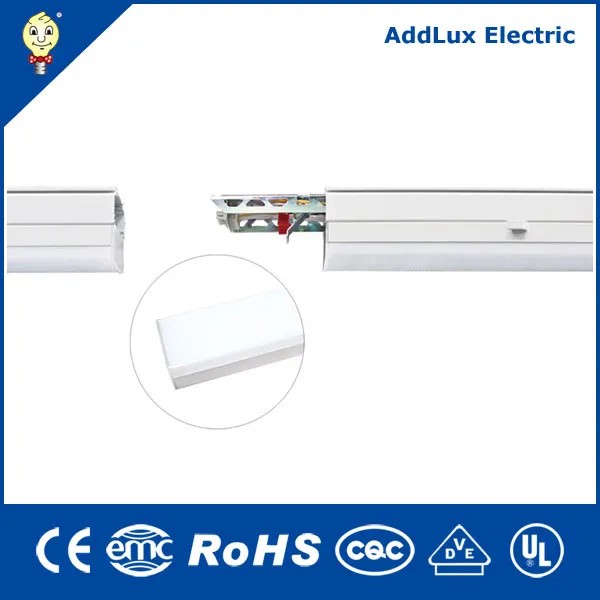

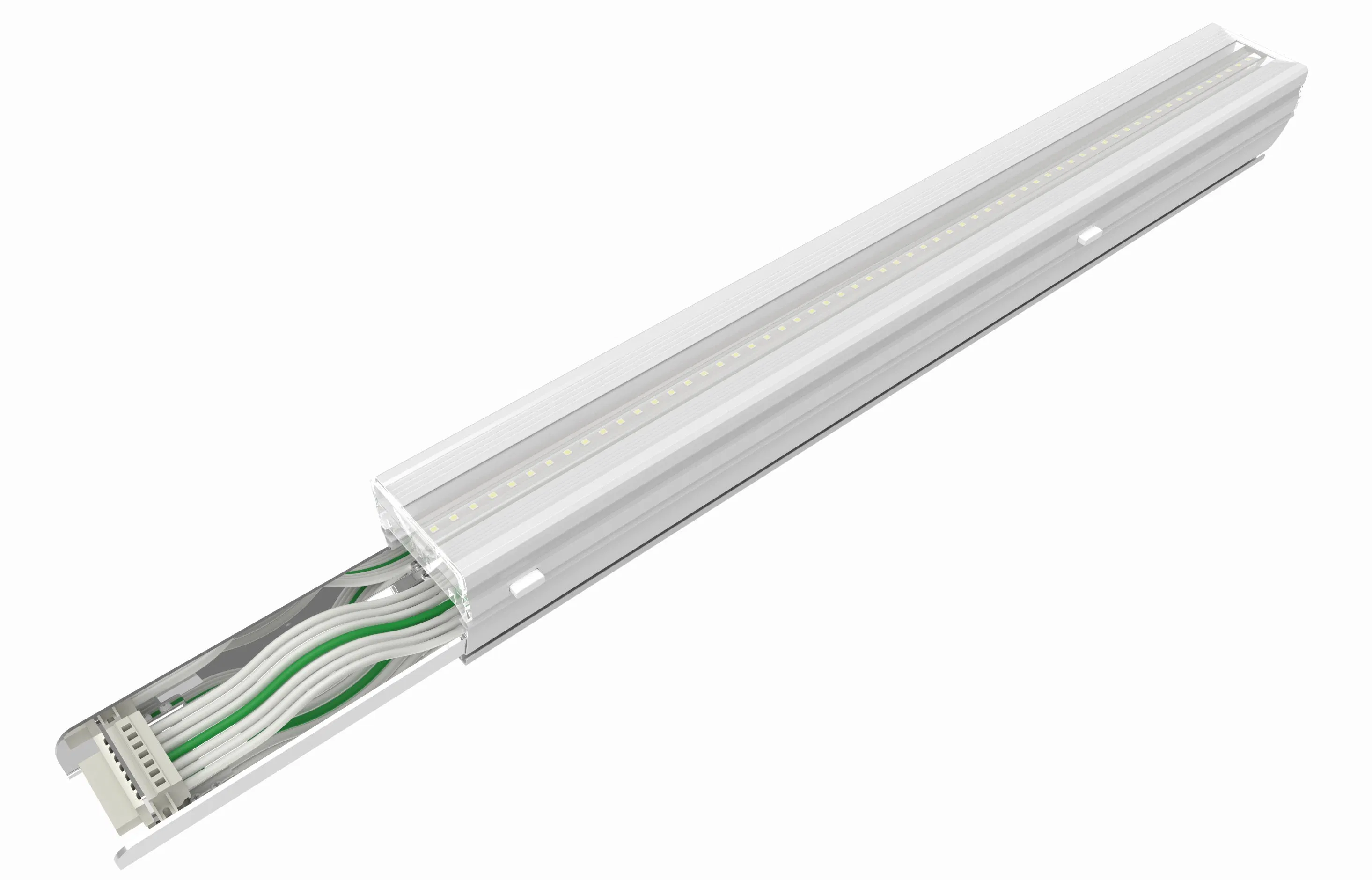

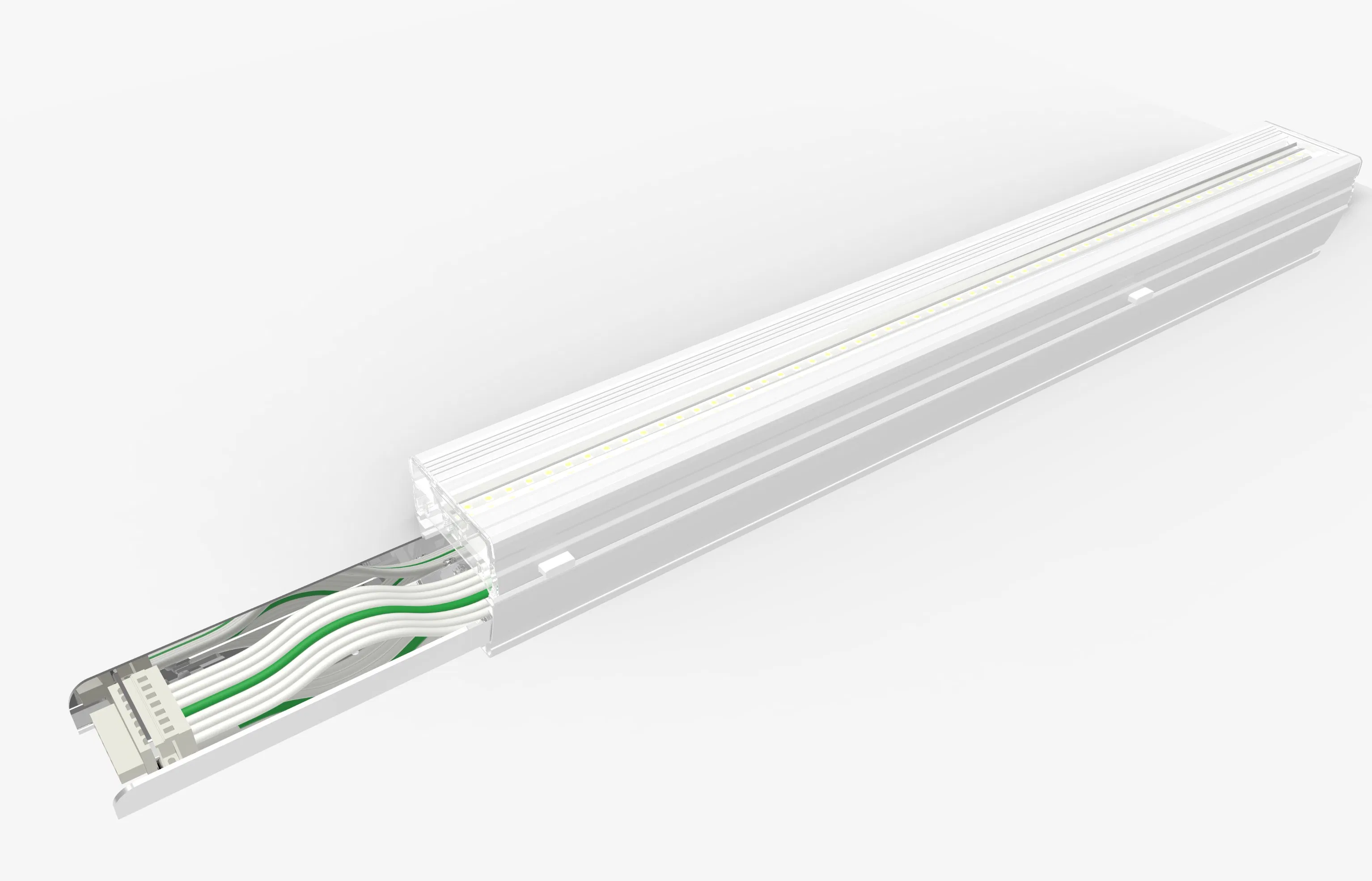

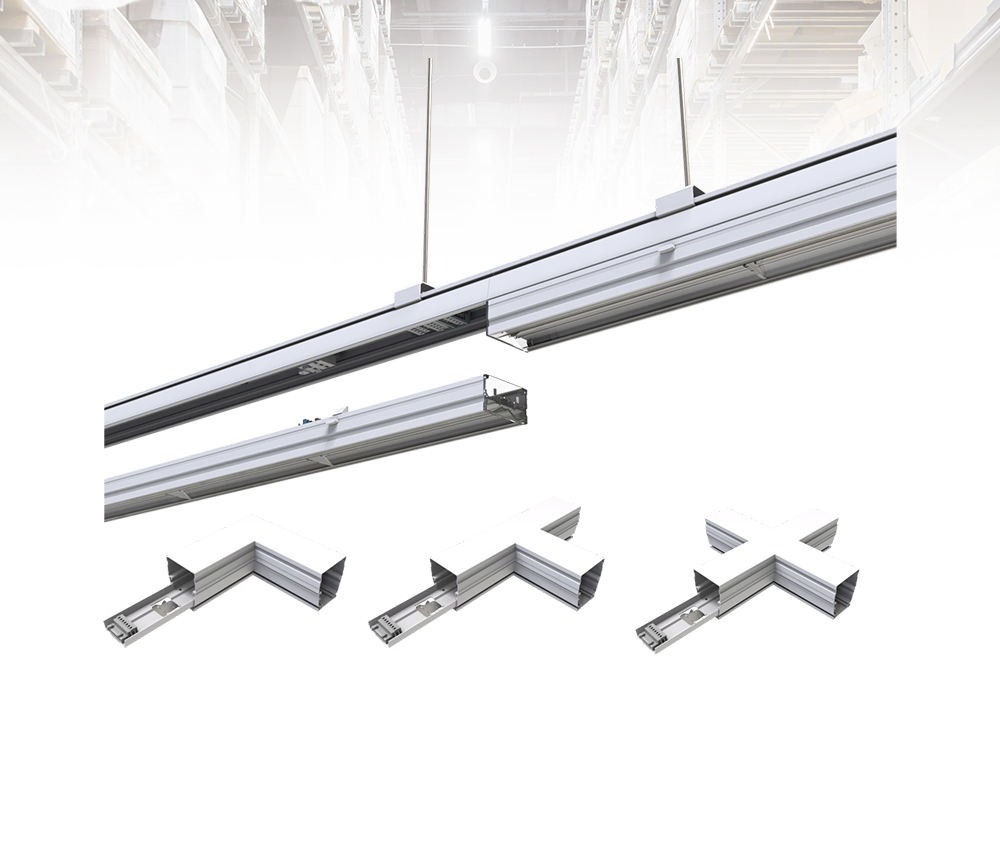

A continuous-row LED lighting system created by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.

Power: 28W-150W

Rated Voltage: 100-277V

CRI: Ra > 80 (CRI 95 available for special applications)

Dimming: NON / 1-10V / DALI / 3CCT

Technical Data

Item No.	Length	Power	Lumen
YB01Z0632	577mm	28W	4160Lm
YB01Z1575	1432mm	75W	9750Lm
YB01Z30150	2861mm	150W	19500Lm
YB01Z45225	4297mm	225W	29250Lm

LED Linear Lighting System

The LED linear lighting system is an energy-efficient, low maintenance alternative to traditional linear fluorescent lights. Due to its tool-less installation, it saves significant time and costs. Perfect for supermarkets, warehouses, and industrial applications.

Application Scenarios

Widely applicable for both Business and Home lighting needs:

Industrial: Warehouse, Workshop, Underground Garages, Laboratories.

Commercial: Supermarket, Shopping Mall, Museum, Office, Restaurant.

Residential: Living Room, Kitchen, Study Room, Bedroom.

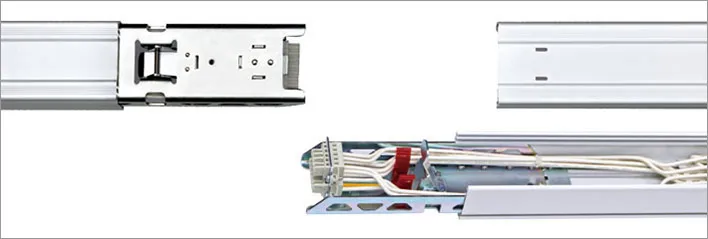

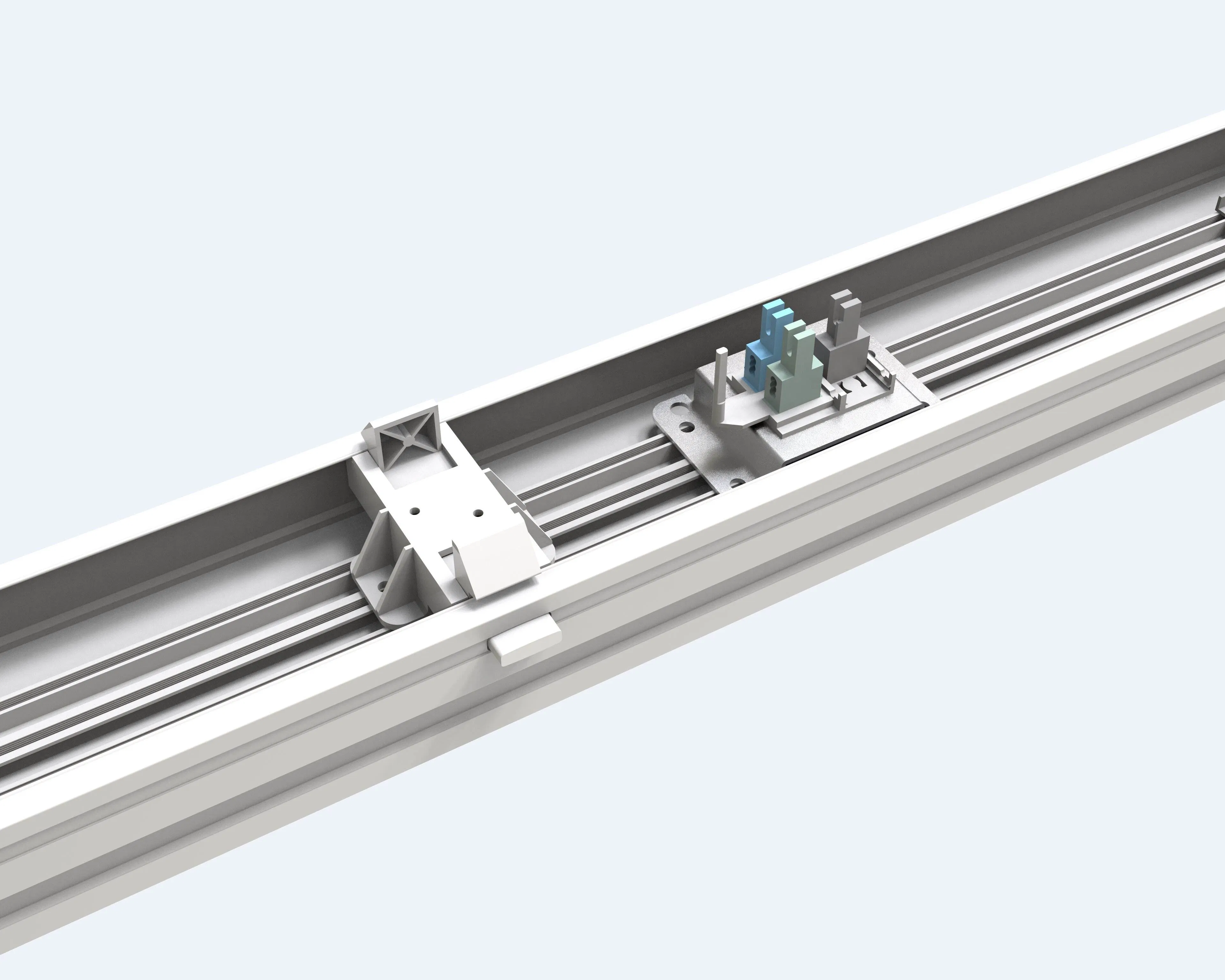

Trunking Rail & Node Connector

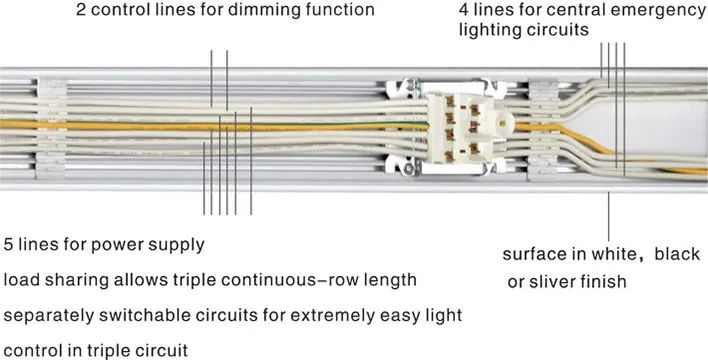

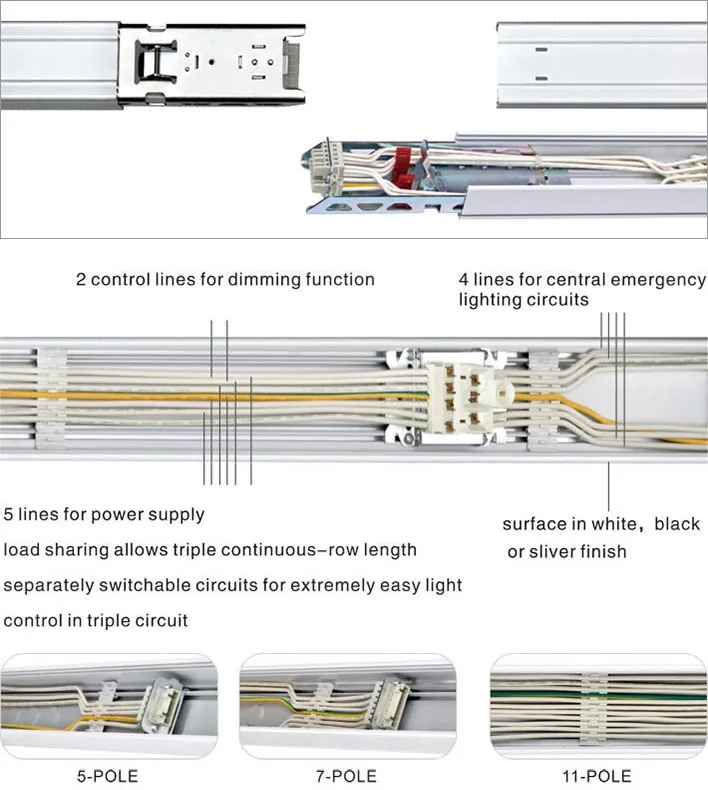

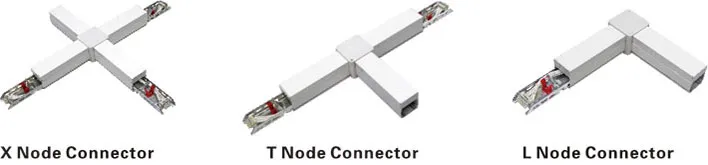

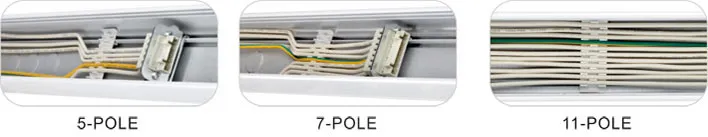

The flexible trunking system features an 11-pole current conducting section. This multi-functional rail integrates power supply, lighting control, and emergency lighting. Node connectors (L, T, X shapes) allow for tool-free expansion in different directions.

Advanced Controls

Dimming: Supports DALI, 1-10V, and DIM switch for dynamic light management.

Emergency: Integrated emergency modes (Ni-MH battery) providing 1.5 to 3 hours of operation during power failure.

Sensors: Multi-sensor system combining motion and daylight sensing for maximum energy efficiency.

Installation Methods

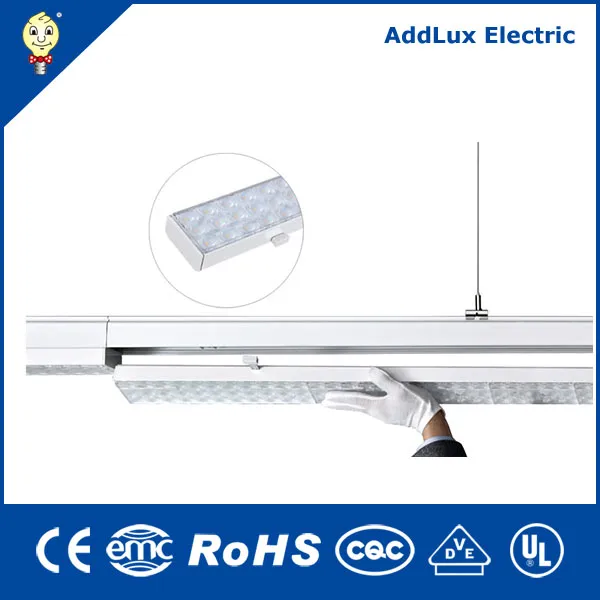

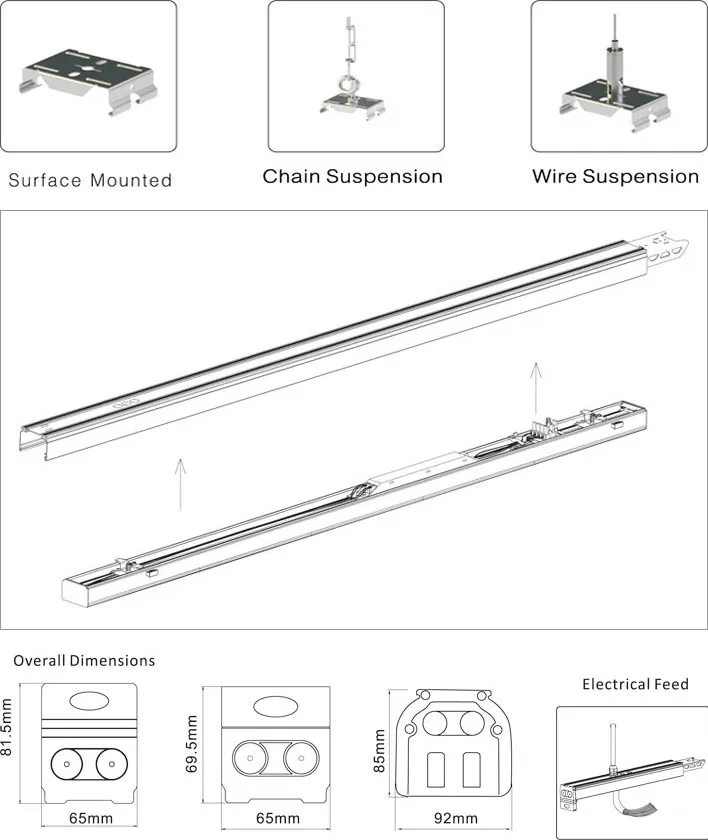

Versatile mounting options including surface ceiling mounted, wall mounted, and pendant suspension (wire or chain). Tool-free modular assembly ensures quick setup.

Frequently Asked Questions

Is the installation of this linear system difficult?

No, the system is designed for tool-less installation. Everything is modular and can be clicked together, significantly reducing labor time and costs.

What dimming options are compatible with these lights?

The system supports multiple dimming standards, including DALI, 1-10V, and DIM switch systems, allowing integration into most building management systems.

Can the light distribution be customized?

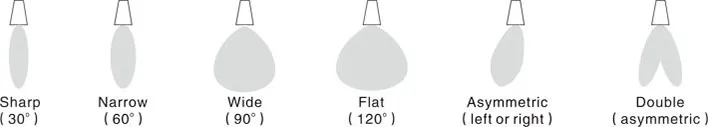

Yes, we offer various beam angles: Sharp (30°), Narrow (60°), Wide (90°), Flat (120°), and even Asymmetric or Double Asymmetric distributions.

What happens if there is a power failure?

The system can be equipped with self-contained Ni-MH emergency batteries or connected to a central emergency generator, providing 1.5 to 3 hours of backup light.

Are these lights suitable for high-accuracy color environments?

While our standard CRI is Ra>80, we highly recommend our CRI 95 series for specialized applications like museums, jewelry stores, and printing factories.

What is the maximum length for a continuous trunking line?

In a 3-phase power supply system (Max 16A), the trunking length can reach up to 200 meters.
