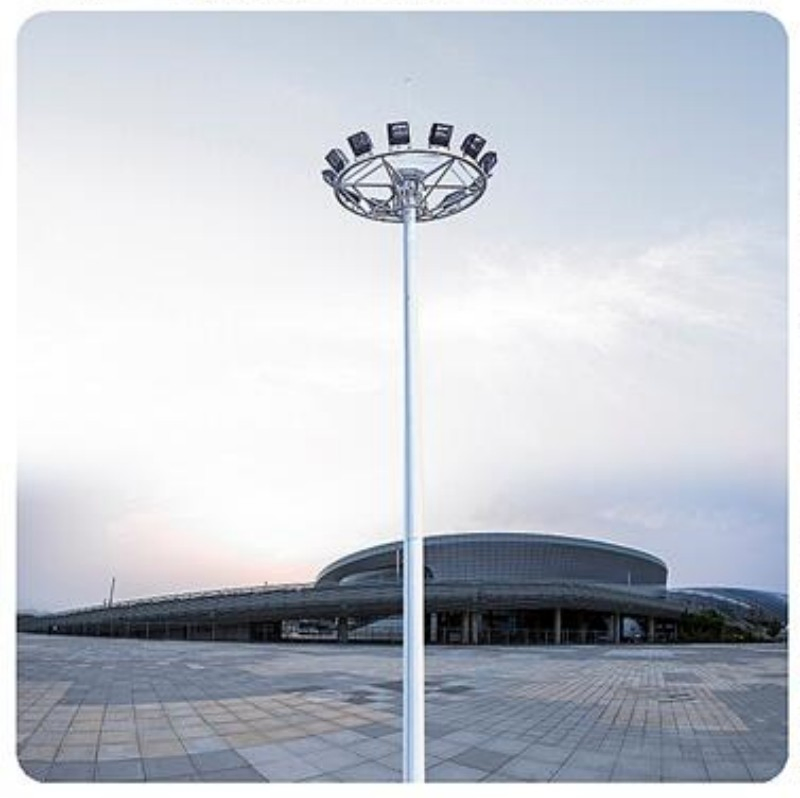

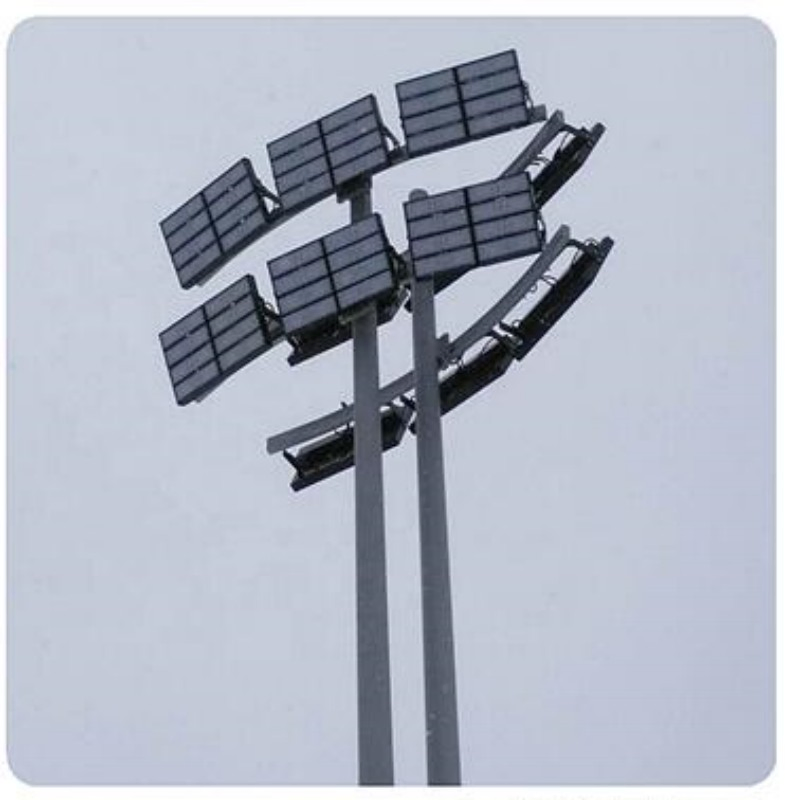

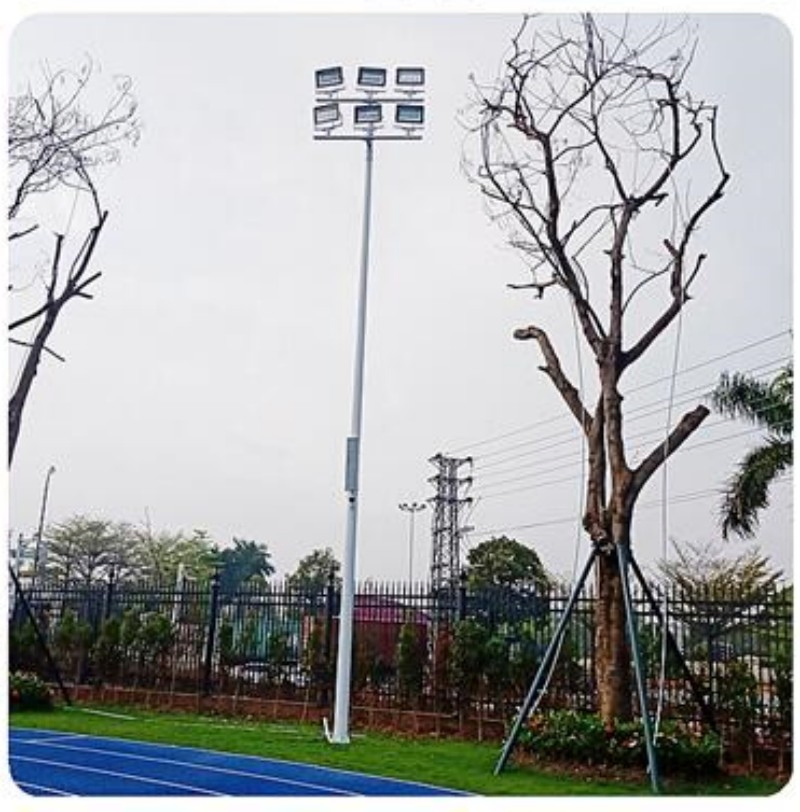

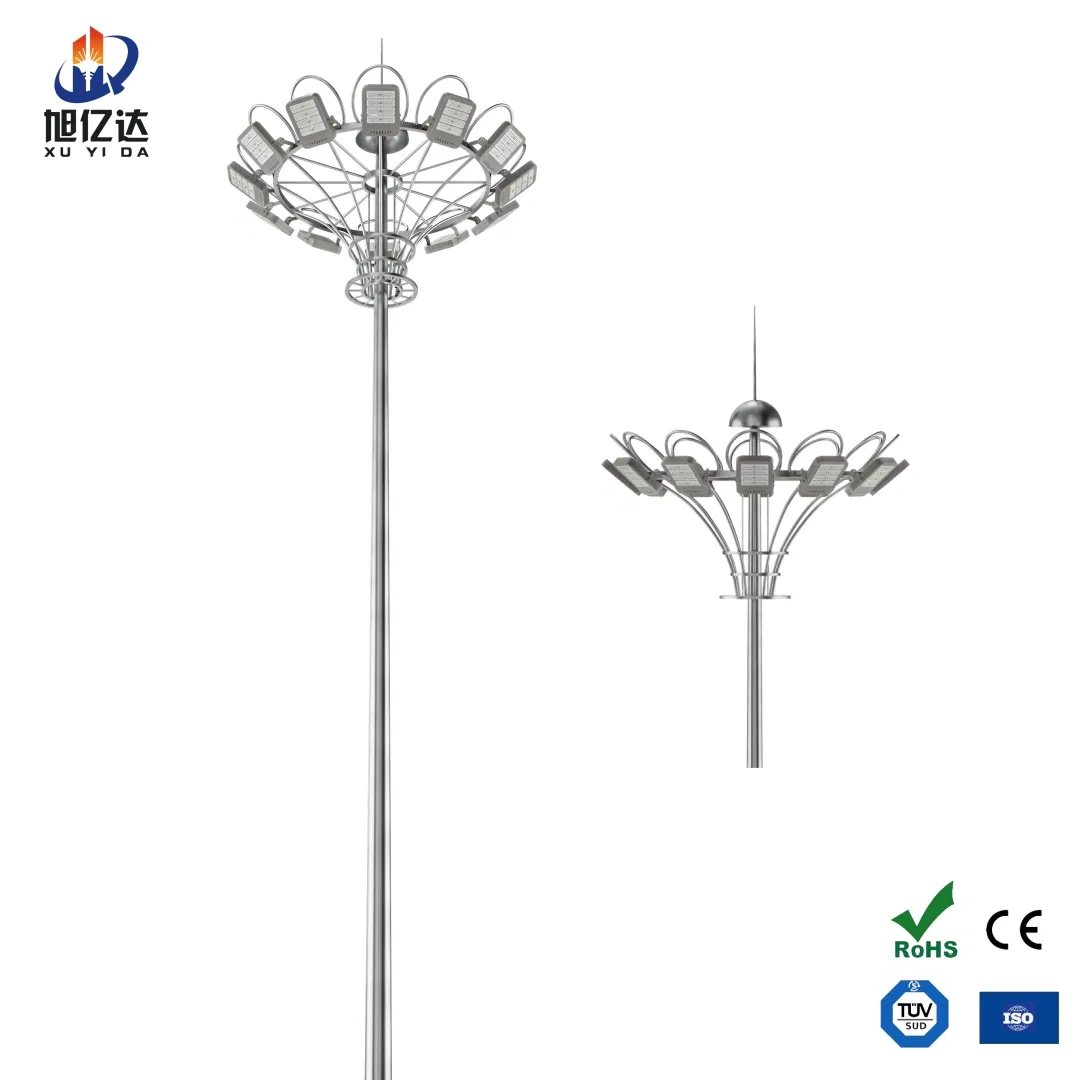

High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
1 / 5
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light
High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light

High Quality 20m 25m 30m 35m Steel Street Lamp High Pole Light

Customization: Available
Color Temperature: Pure White
Lamp Body Material: Steel
Send Inquiry

Product Description

Product Overview
Model NO.
558
Pole Height
20m, 25m, 30m, 35m, 40m
Power
200-1200W
Projection Distance
80m
Usage
Public works, Square, Airport, Port, Stadium, Highway
IP Rating
IP67
Certification
CCC, CE, RoHS
Input Voltage
220V
LED Chips Brand
CREE
Raw Material
Q235/Q345/Stainless
Surface Treatment
Hot Dip Galvanized / Powder Coated
Production Capacity
1000 pieces/Month

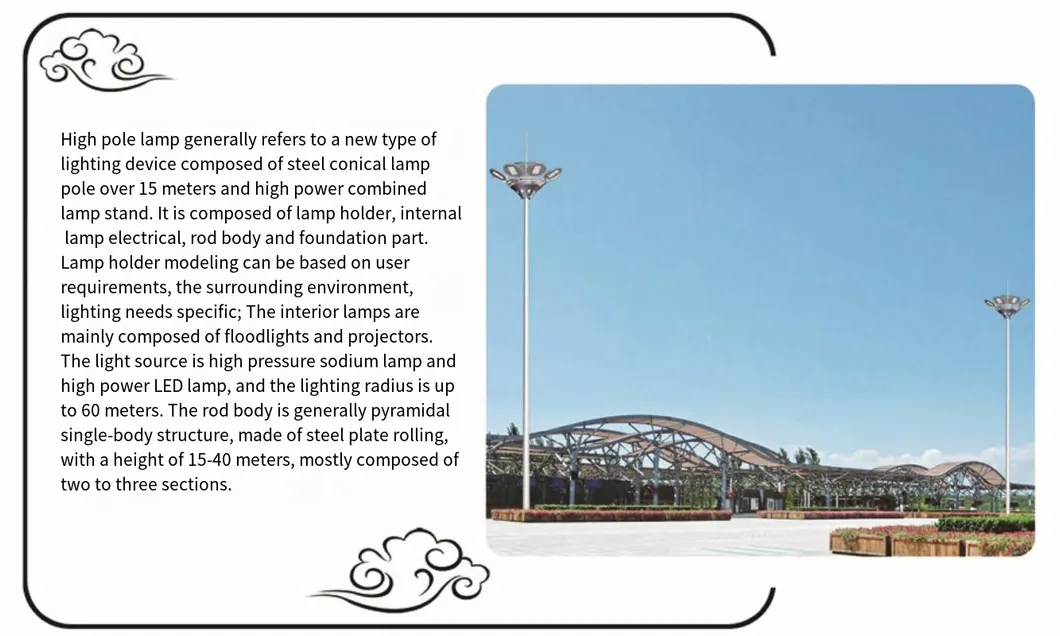

High Pole Light Main View
Technical Specifications
HeightFrom 15 m to 35m
ApplicationsHighway, Freeway, Airport, Square, etc.
ShapeConical, Octagonal, Square, Cylinder
MaterialUsually Q345B/A572, Q235B/A36, Q460
Lamp Power20 W - 400 W (HPS/MH) / 220V (+-10%) / 50Hz
Surface TreatmentHot dip galvanized (ASTM A 123), color polyester powder coating
Joint of PolesInsert mode, inner flange mode, face to face joint mode
Design StandardAgainst earthquake of 8 grade
WeldingAWS D 1.1 Standard; Internal and external double welding
Product SystemAutomatic lifting system
Light Source200W-500W/LED floodlight

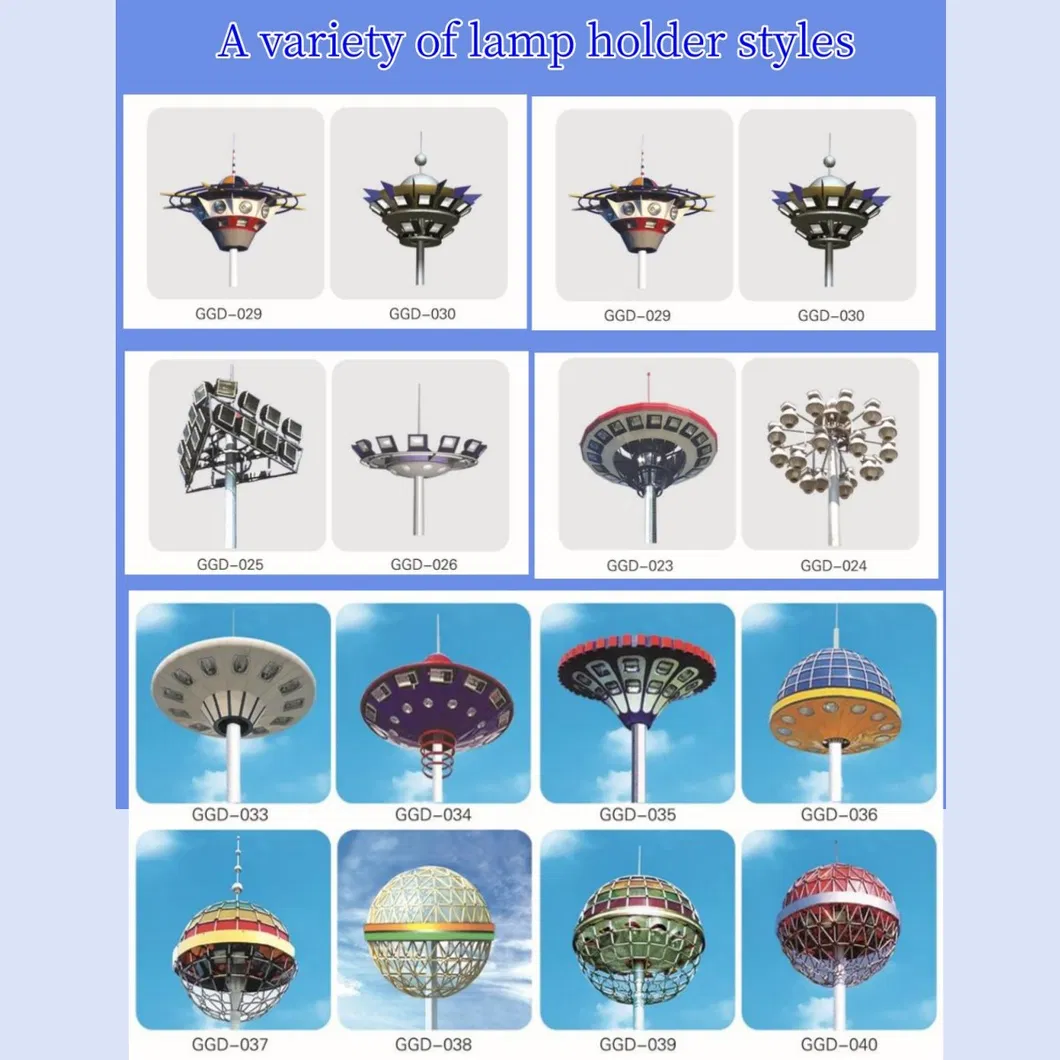

Product Details
Component 1

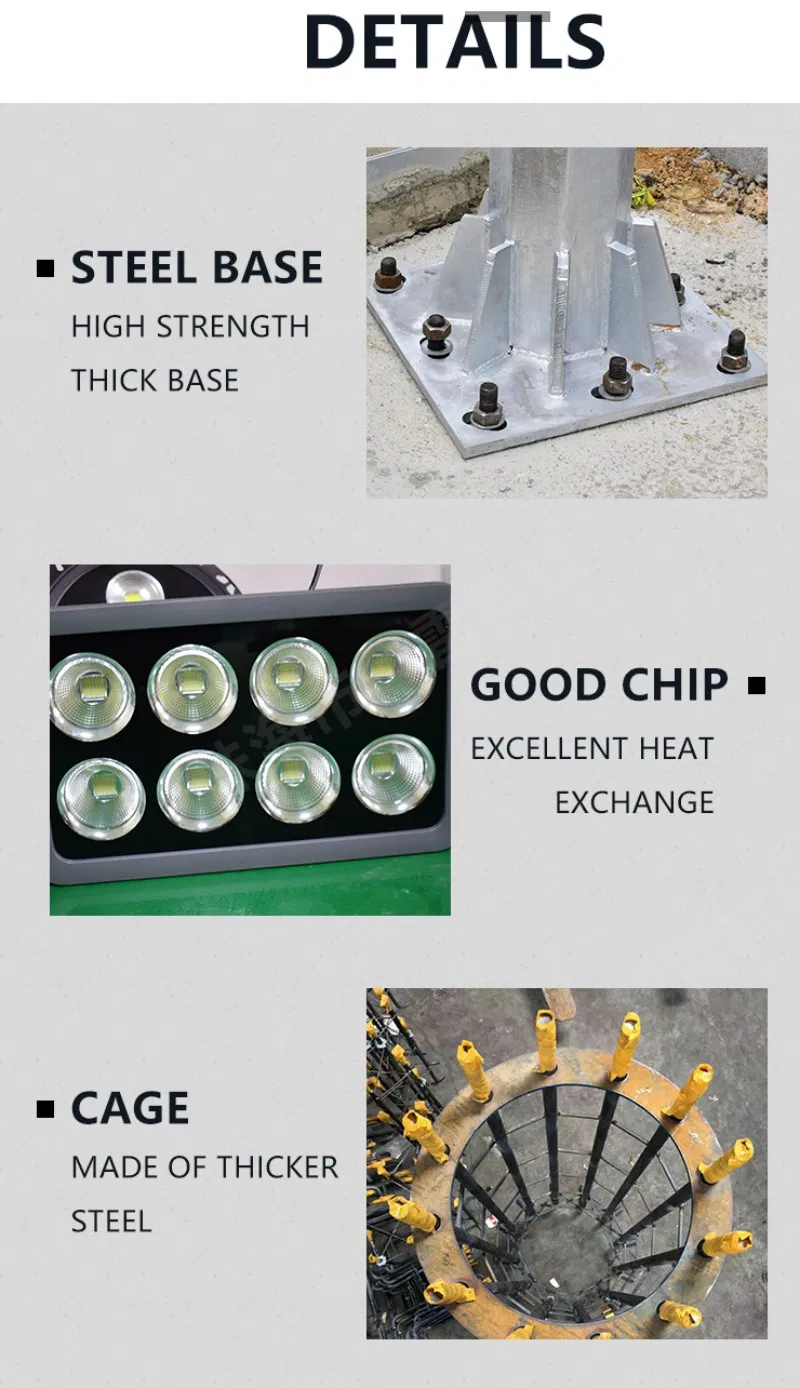

Component 2

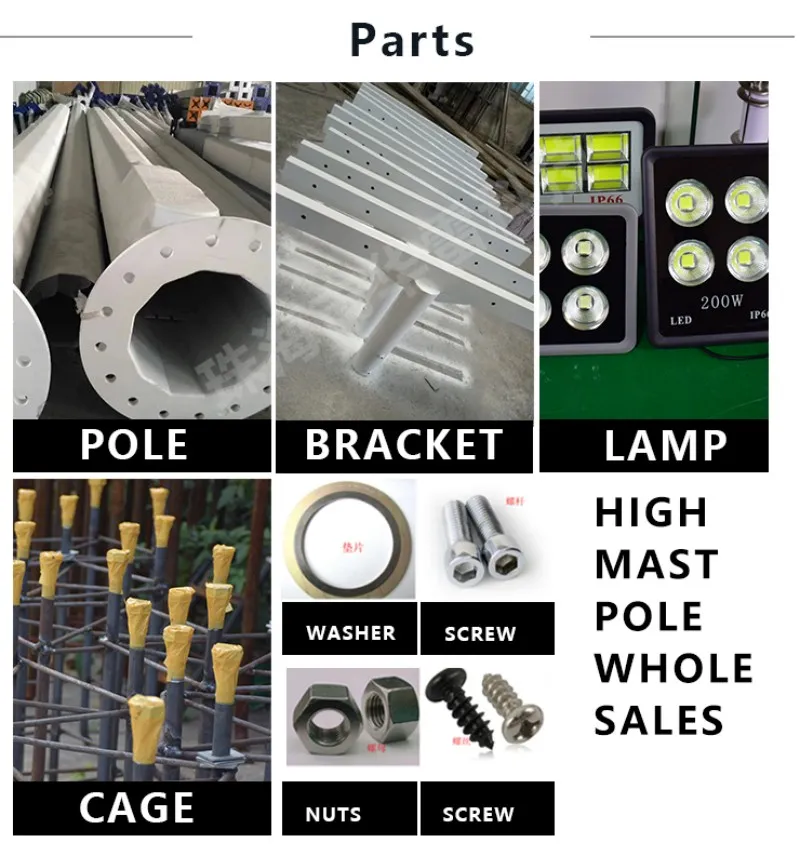

Component 3

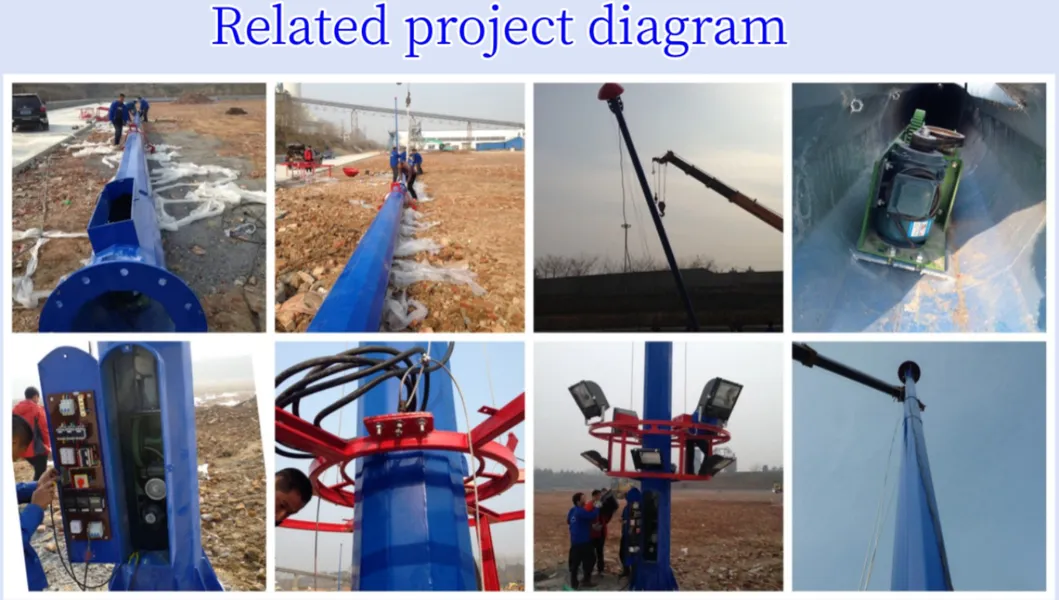

Component 4

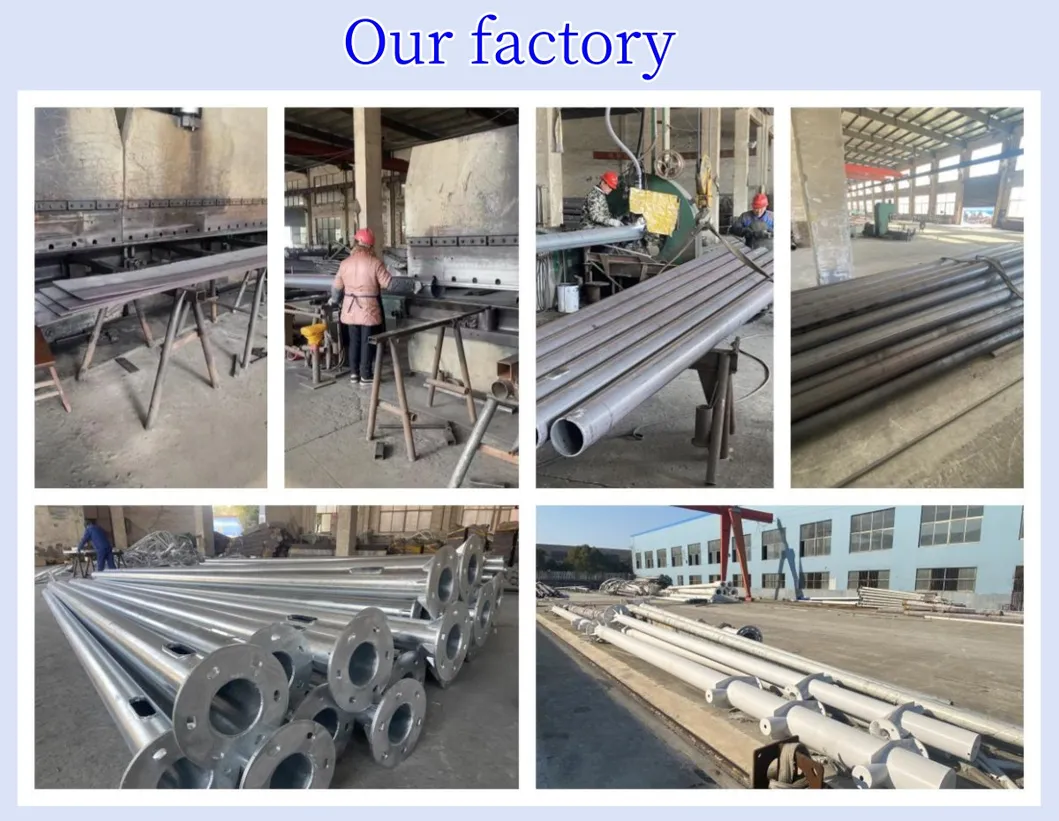

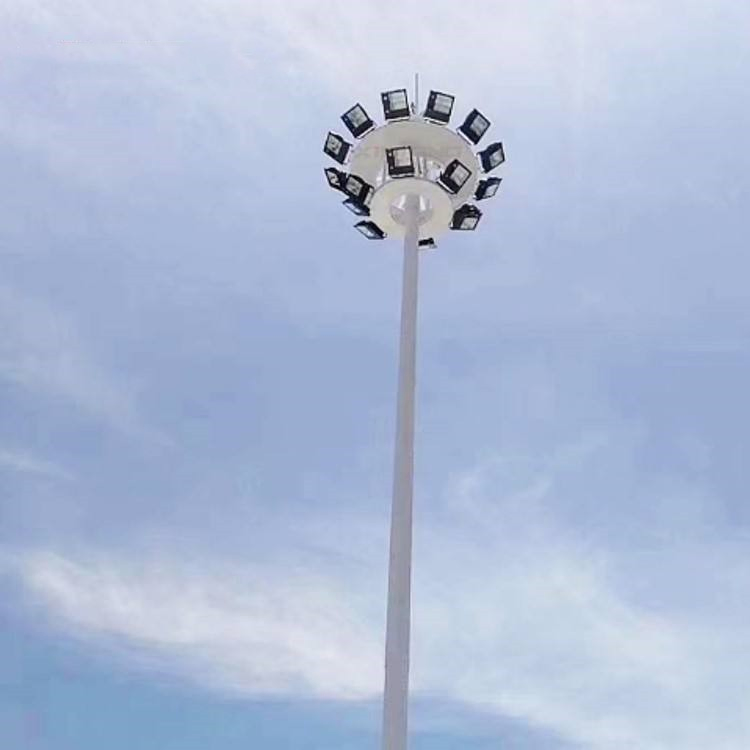

Installation Example
Quality Certification
Certificates
Professional Services

Before-Sales Service

  • 24Hrs Online Quick Response
  • Competitive Factory Direct Pricing
  • Online & Offline Factory Tours
  • Sample Support for Quality Testing
  • Customized Solution Quotations

After-Sales & Logistics

  • Technical Support within 24 Hours
  • Secure Export Packaging (Wooden Boxes)
  • Ocean Freight Coordination
  • Quality Warranty Commitment
Frequently Asked Questions
What is the available height range for these poles?
Our high pole lights are available in heights ranging from 15 meters to 40 meters, suitable for large-scale area lighting.
How does the automatic lifting system work?
The system utilizes a microcomputer-controlled motor to lower and raise the lamp panel, allowing for easy ground-level maintenance.
Are the poles resistant to extreme weather?
Yes, the poles are designed to withstand earthquakes up to grade 8 and are treated with hot-dip galvanization to prevent corrosion in harsh environments.
What is the lead time for production?
Our current production capacity is approximately 1,000 pieces per month. Lead times depend on the specific order quantity and customization requirements.
What light sources can be used with these poles?
We primarily use high-efficiency LED floodlights (200W-1200W) with CREE chips, but traditional HPS/MH lamps are also compatible.
How is the product packaged for international shipping?
Components are individually packed. LED lamps and solar panels are secured in wooden cases for LCL shipments to ensure maximum protection.
