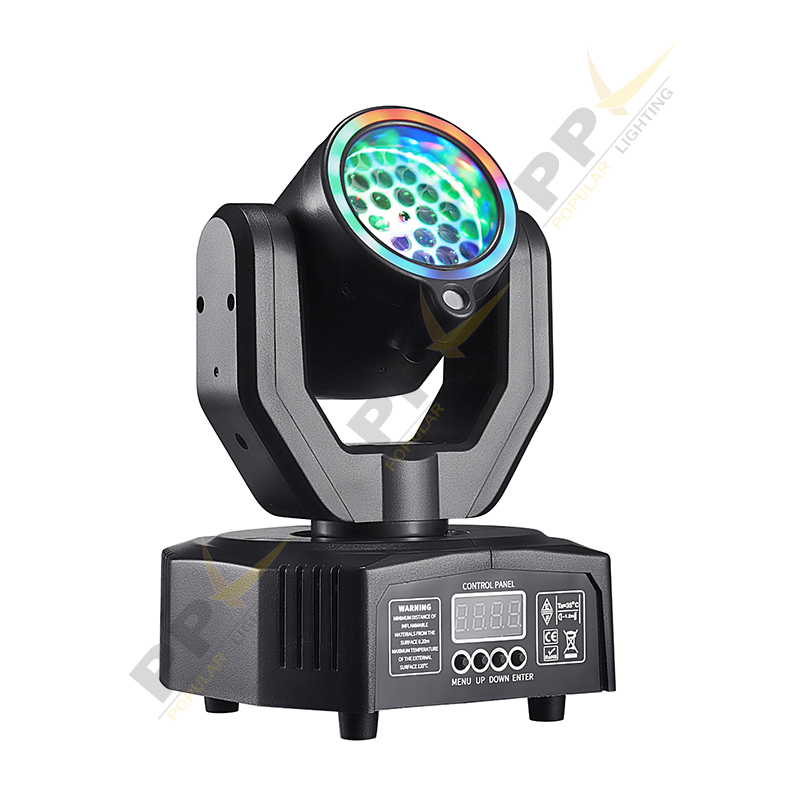

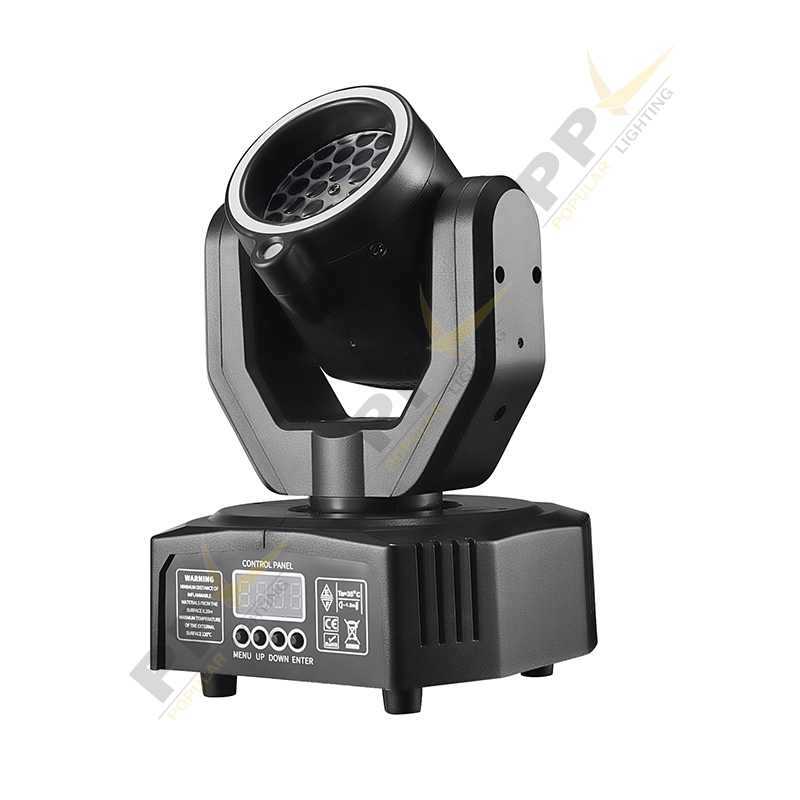

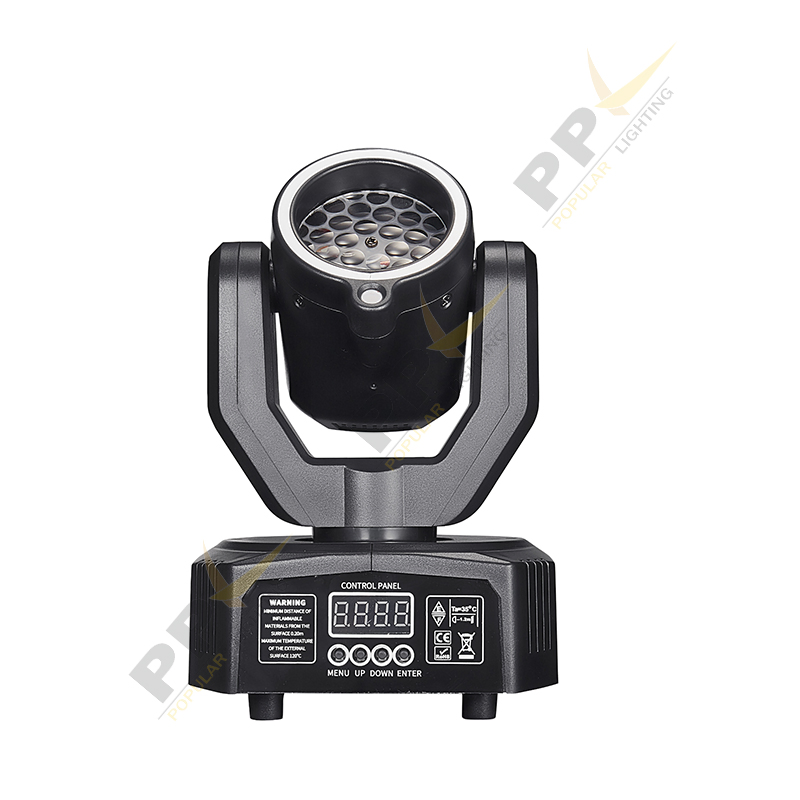

60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
1 / 5
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events
60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events

60W Mini LED Moving Head Beam Narrow Angle Spot Light for Stage & Events

Customization: Available
Kind: Moving Head Light
Emitting Color: Cool White
Send Inquiry

Product Description

Basic Specifications
Model NO.
PPL-Mini30BS
Application
Stage
IP Rating
IP20
Certification
CE, RoHS
Power
30W
Transport Package
Carton
Origin
China
Production Capacity
200PCS/Month
Detailed Product Description
Category Parameter Details
Power supplyAC95V-245V/50Hz
Product power30W
Lamp beads6 PCS 3535 ball, 1PCS 50mW green laser, 12PCS 5050 0.2W LED
Control ModeDMX512, 12 channels for international use
Mode of operationDMX512, master/slave, self-walking, voice control
Dimming mode0~100% ultra-smooth dimming
Strobe20 times per second
MovementPan 540 °, Tilt 190° (16-Bit)
Heat dissipationAluminum products cooling, forced cooling fan
Size of inner box17.5*17.5*25.5CM
N.W / G.W0.85KG / 1.25KG
MaterialFerrous body, ABS Shell
Product Showcase

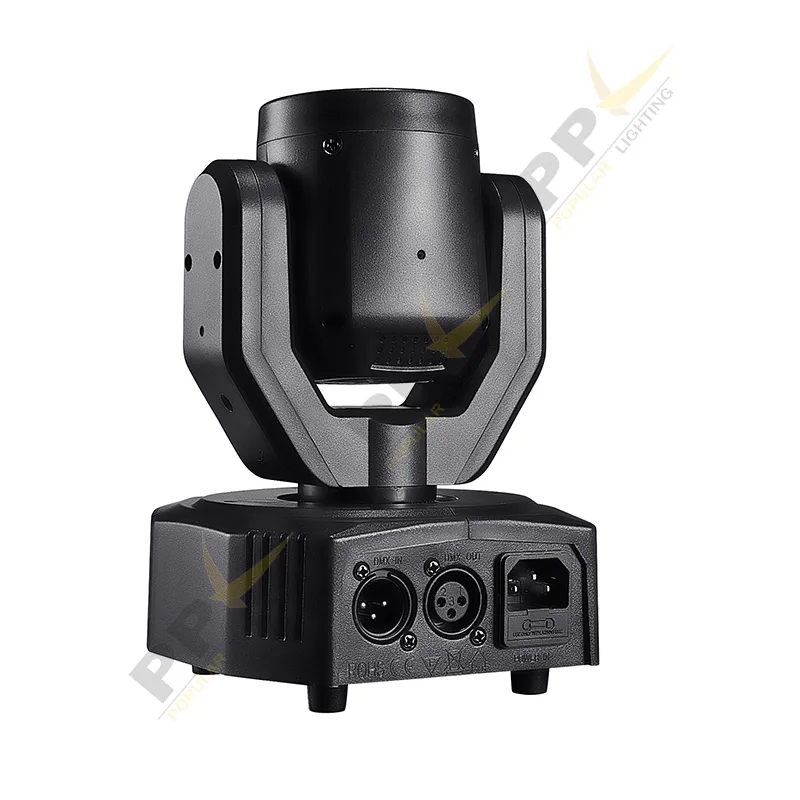

LED Moving Head Light View 1
LED Moving Head Light View 2

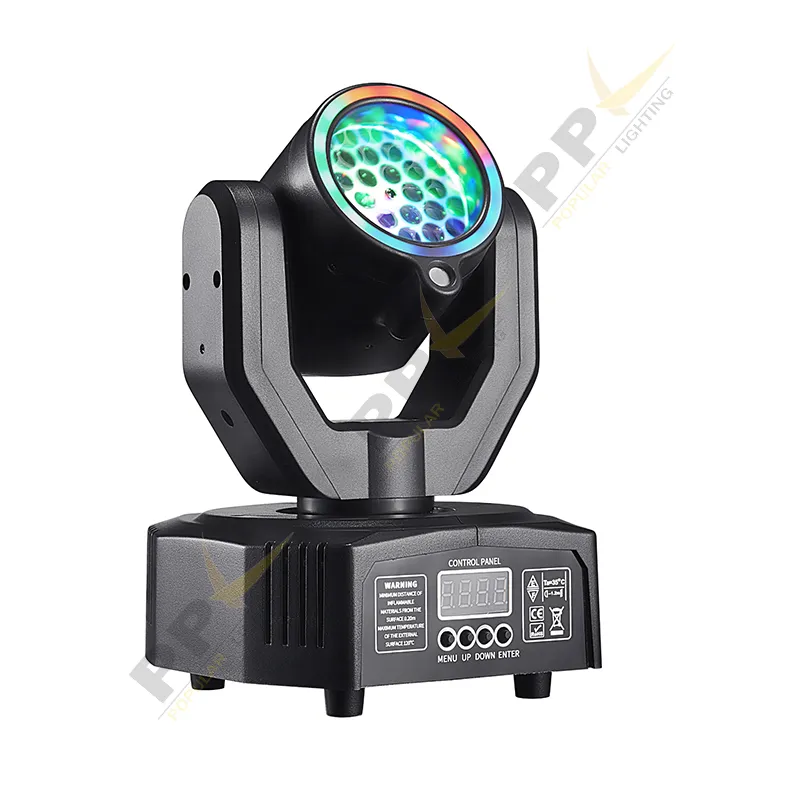

LED Moving Head Light View 3
LED Moving Head Light View 4
Product Dimensions
Technical Structure
Internal Components
Lighting Effects 1
Lighting Effects 2
Control Panel
Installation Guide
Production Detail
Full Product Range
Frequently Asked Questions (FAQ)
Q1: What are the main lighting components of the PPL-Mini30BS? The unit features 6 pieces of 3535 ball lamp beads, 1 piece of 50mW green laser, and 12 pieces of 5050 0.2W LEDs for versatile stage effects.
Q2: Does this moving head light support DMX control? Yes, it supports standard DMX512 with 12 international channels, as well as Master/Slave, Self-walking, and Voice Control modes.
Q3: What is the movement range of the light head? The light offers high-precision movement with a Pan range of 540° and a Tilt range of 190° (16-Bit resolution).
Q4: How does the device manage heat during long-term operation? It utilizes a combination of aluminum cooling components and a forced cooling fan system to ensure stable performance.
Q5: Is the dimming effect smooth for professional stage use? Absolutely. It features 0~100% ultra-smooth dimming to meet the requirements of professional stage environments.
Q6: What are the certifications for this product? The PPL-Mini30BS is fully certified with CE and RoHS standards, ensuring safety and quality compliance.
